China clay / Kaolin

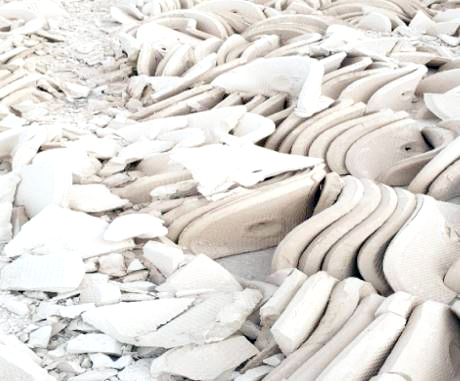

China clay / KaolinChina Clay is also known as kaolin & white clay. Primary clay formed by natural kaolinization process.
Akshar Minerals Kaolin is a naturally occurring Hydrated Aluminium Silicate crystalline mineral. It is characterized by its lamellar or platy particle shape, fine particle size and chemical inertness. The combination of platy shape and fine particles size results in improved characteristics and makes it suitable for different applications.
The chemical formula for china clay used in mineralogy is Al2Si2O5(OH4).
Characteristics :
- High Purity
- Proven Performance
- Formulation Flexibility
- Superb Value
Available Packing Option :
- Loose form
- 25Kg to 50Kg Bags
- 1MT to 1.4MT Jumbo Bags
China Clay Grade Sheet
| Parameters | DSP SS | DSP-A | DSP-B | DSP -C | DSP-M |
|---|---|---|---|---|---|
| Loss on Ignition | 13.65 | 13.58 | 13.28 | 13.23 | 13.97 |
Silica as SiO2| 45.81 | 47.64 | 47.83 | 47.1 | 46.82 | |
| lron as Fe2O3 | 0.58 | 0.54 | 0.28 | 0.27 | 0.23 |
| Alumina as AI2O3 | 36.95 | 36.28 | 36.9 | 36.98 | 37.1 |
| Potash as K2O | 0.12 | 0.12 | 0.08 | 0.24 | 0.08 |
| Soda as Na2O | 0.28 | 0.09 | 0.11 | 0.32 | 0.26 |
| Calcium Oxide as CaO | 0.29 | 0.26 | Trace | 0.29 | 0.26 |
| Magnesium Oxide as MgO | 0.38 | 0.41 | 0.4 | 0.62 | 0.41 |
| Titanium as TiO2 | 1.62 | 0.43 | 0.3 | 0.5 | 0.82 |
| Firing Whiteness | 84 | 87 | 91.1 | 92 | 92.2 |
| L-Value | 90.22 | 92.4 | 94.1 | 94.5 | 97.06 |
| A-Value | 1.32 | 0.87 | 0.74 | 0.55 | 0.81 |
| B-Value | 5.11 | 4.06 | 3.63 | 3.52 | 3.94 |
| Firing Colour | CREAMISH | White | White | White | White |
| Shrinkage | 5.54 | 5.54 | 4.32 | 5.52 | 5.72 |
| Fired Temperature °C | 1200 | 1200 | 1200 | 1220 | 1200 |
| Residue on 300# | 0.21 | 0.38 | 0.5 | 0.04 | 0 |
| Water Of Plasticity | 36.4 | 36 | 37.5 | 38.12 | 37.8 |
| Water Absorption | 21.22 | 18.16 | 16.4 | 23.36 | 20.63 |
| Dry M.O.R Kg/cm 2 | Lamination | Lamination | 12.53 | Lamination | Lamination |
| Fired M.O.R Kg/cm 2 | 52.2 | 40.3 | 92.6 | 65.2 | 61.2 |
Applications

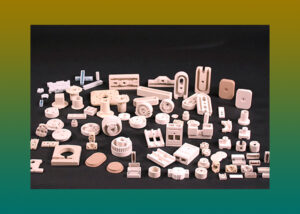

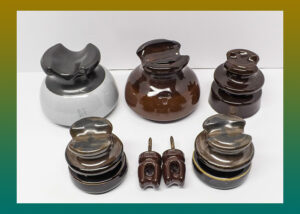

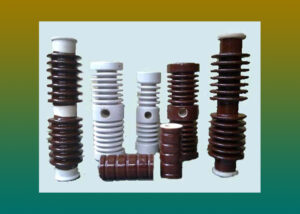

- Akshar Minerals Kaolin Powder is a superior grade Kaolin Powder. It is a Micronized Fine powder which has lamellar or platy particle shape and chemically inert which improves rheology / Deformation & Flow & Opacity/Lack of transparency. It very suitable Kaolin for the Industries like Ceramics, Insulator, Fiber Glass, Pharma, Rubber & Paint and Sanitary.
